After a number of days of rumours, Nvidia have confirmed that the Founders Editions of their upcoming Ampere RTX 3000 sequence GPUs will certainly have a brand new 12-pin energy connector. There’s nonetheless slightly below per week to go earlier than their big GeForce event, however right this moment Nvidia launched a brand new video and blog post detailing the next-gen cooling resolution for his or her RTX 3000 playing cards, giving us our first glimpse of the brand new energy connector, in addition to just a few extra particulars on why they’ve determined to eschew the standard 8-pin connectors in favour of this new (and seemingly vertical) energy resolution.
Alas, the video stops wanting exhibiting us the total and closing design of the upcoming Nvidia Ampere GPUs, however it does go into numerous element about how Nvidia give you the designs of their graphics playing cards extra usually. It additionally drops just a few, if barely imprecise clues about what to anticipate from their Ampere GPUs, although, which appear to substantiate every little thing we’ve seen and heard about Nvidia’s RTX 3000 sequence up to now – specifically, that they’re going to have a rather funky new fan design, as seen in beforehand leaked photos, and can in all probability be fairly darn massive.
First up, Nvidia speak about how they’ve needed to primarily rip up their very own rule guide in the case of graphics card design for Ampere, suggesting that, yep, the RTX 3000 playing cards aren’t going to appear to be any form of Founders Edition card which have come earlier than them.

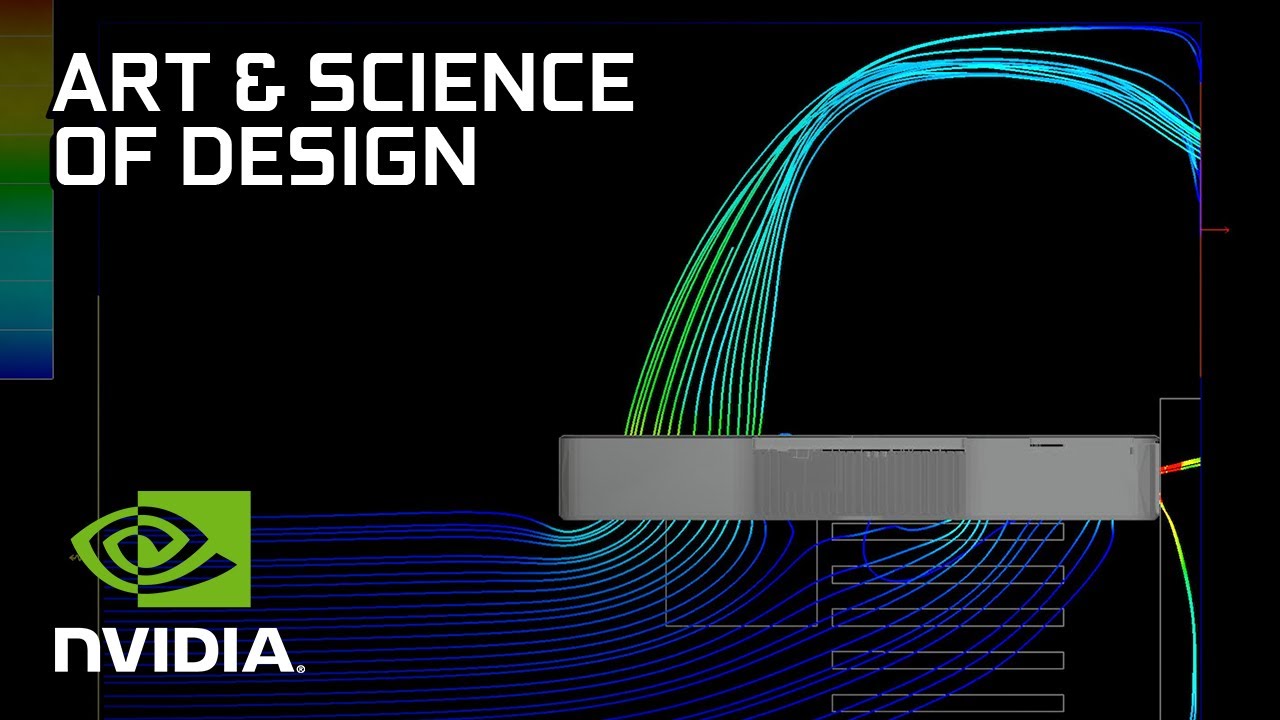

“To achieve even more cooling performance, we have to move more air through the system,” Nvidia’s thermal architect David Haley says within the video. “In order to achieve this perfect airflow, we have to remove the constraints that we had before. We have to change the PCB. We have to move the fans. We need to change the software stack that’s controlling the fans.”
Next up, it’s the flip of Andrew Bell, Nvidia’s VP of product design. He begins by speaking about how earlier cooling options have historically been mounted onto the PCB with very tall springs. “So we challenged our mechanical engineers to come up with a leaf-spring design to keep the springs that hold the thermal solution to the GPU low-profile enough that we could fit a back cover over them,” he says, presumably so stated again cowl can whack one other fan onto the opposite rear of the graphics card, like we’ve seen within the images.
Nvidia then transfer on to speak about that all-important 12-pin PSU connector, and the way it was one in every of their objectives this time spherical to “generate more performance by getting more power into the GPU” along with the same old efficiency positive aspects you get just by shifting to a brand new structure. The drawback with that is that the extra energy you squeeze via a high-end graphics card, the danger of introducing issues like crosstalk will get a lot greater, which might corrupt {the electrical} alerts being handed via a number of wires contained in the GPU. Now, there isn’t a number of room on a graphics card’s PCB to try to assist area these wires out.
“The way to mitigate it is, of course, using more layers on the PCB,” says Gabriele Gorla, Nvidia’s director of system engineering. “One of the components we reduced the size of significantly was the power connector, and we designed a new connector, which is smaller than the PCIe Express, but actually ends up carrying more power.”
Finally, Nvidia’s senior industrial designer Joseph Lee comes out to reassure us that the ultimate design of the brand new Ampere RTX 3000 sequence (i.e: the bit we see on the surface) gained’t compromise all of the stuff they’ve simply talked about “in the name of aesthetics”. The video additionally exhibits off some easy pencil sketches (pictured above) of assorted varieties of graphics playing cards, however none of them actually correspond to the leaked images we’ve seen up to now of the RTX 3080 and RTX 3090. The one at centre proper simply on the high of the picture might be the closest factor we’ve seen up to now to the leaked images, however even I’m prepared to confess it’s a little bit of a stretch.
Either approach, Lee goes on to say that as an industrial designer, “you should try not to look at what’s been done before,” implying as soon as once more that these playing cards are going to be fairly completely different from earlier Nvidia Founders Editions, and that these followers can be proper on the fore of their general look.
“As a design team, before we started to dive into the conceptualisation phase, we naturally gravitated towards this idea where, really, the thermal aspect of the design is fully embraced. From that foundation, we were able to achieve this breakthrough thermal technology.”
And then, the very briefest of glimpses of 1 facet of the RTX 3000 sequence proper on the 8.10 mark:
To comply with the total reveal of Nvidia’s Ampere RTX 3000 sequence, you possibly can tune into their special GeForce Event subsequent Tuesday on September 1st at 9am PT / 5pm BST, or preserve your eyes peeled on RPS the place I’ll be overlaying the entire launch because it occurs.
